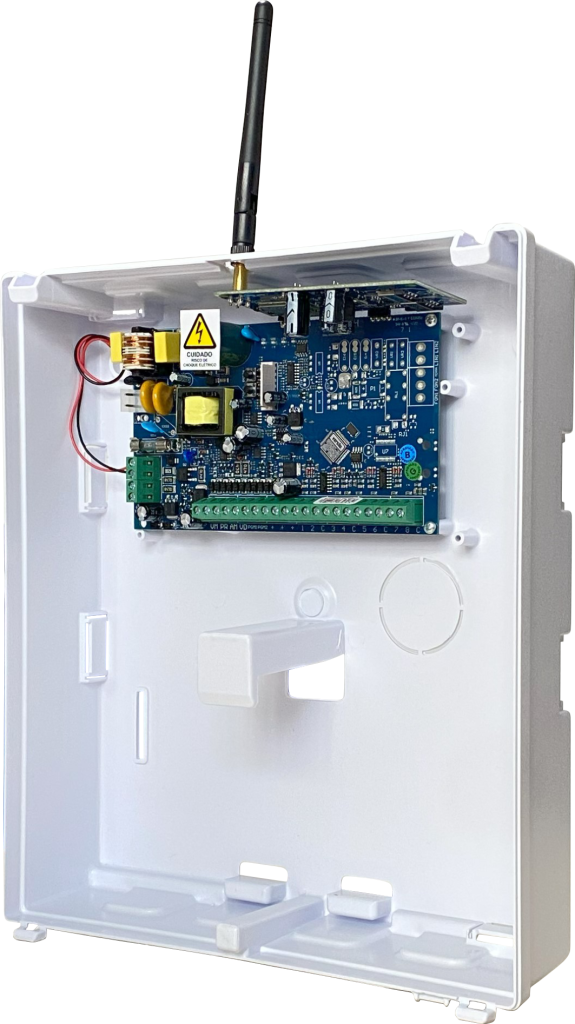

16 zones Alarm Panel.
Models
Code: 3.01.00.0136 – VW16Z 4G IP with ABS case.
**Tamper is optional. Code: 3.03.00.0003
Characteristics
- Processor: ARM 32 bits;
- Zones: 16;
- Expansion: up to 128 zones;
- Partitions: 8;
- 64 passwords (expandable);
- Buffer: 2.048 events;
- Accessories connected to the panel: 8;
- Automation outputs: 2;
- Comunication: 4G/GPRS and IP;
- Software update: 4G/GPRS, IP and serial cable;
- Sirens: 2 sirens (associated to partitions);
- Siren output: 2,5A;
- Full range power supply
- Auxiliary output: 1,2A;
- SIM cards: 2;
- Events sending up to 3 different domains destinations;
- Ativation by up to 8 mobile numbers;
- 8 groups of calendar restricted passwords (days and time restrictions);
- Software update without stopping panel operation;
- Clock automation adjust (operator or NTP server);
- Data use meter for both SIMs;
- Accept NC / NO sensors (programmable by zone);
- Integrated WEB page for programming;
- Internet access detection system;
- Programming and operation with VIAWEB apps.

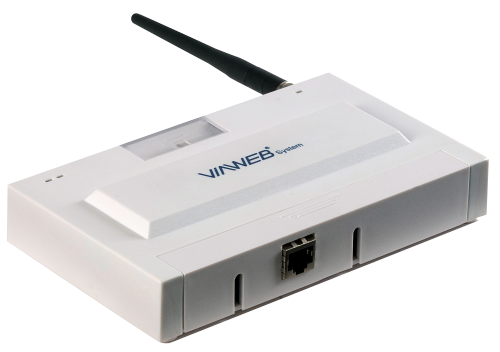

VIAWEB 4G + IP UNIVERSAL
Model
Universal module for events communication by 4G/GPRS or IP.
Code: 3.03.00.0182 – Universal 4G IP Module
Characteristics
- Universal. Communicate with CONTACT ID compatible Alarm Panels
- Exclusive encryption and authentication, which brings high level security
- Encryption: AES 256 bits CBC or AES 128 bits ECB
- Communication by 4G/GPRS, SMS and IP, with automatic switch to telephone line when internet is
unavailable - Signal level test
- Local and remote programming
- Events sending up to 3 different IP addresses or Domains
- Integrated telephone line detector
- Two programmable outputs (relay)
- Two simcards
- Compatible with VIAWEBmobile application
- DHCP enabled
- Local or remote firmware update

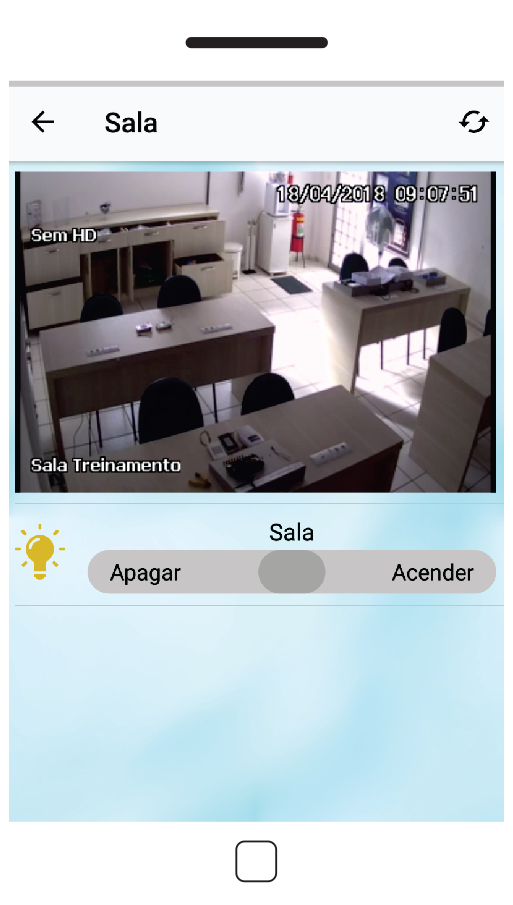

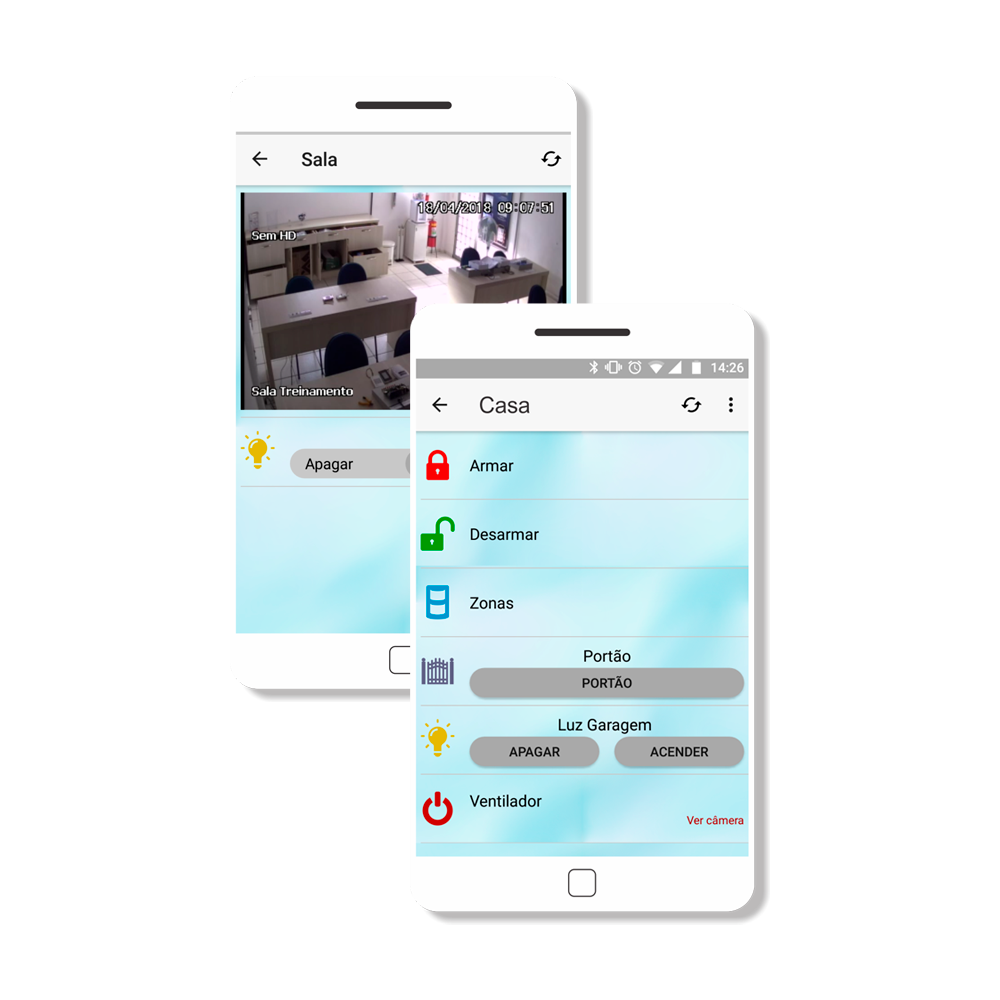

VIAWEB MOBILE
Characteristics
- Shows system status;
- System operation (arm, disarm);
- Automation operation (lights, gates);
- Operates up to 10 different VIAWEB alarm systems;
- System operation over local wifi or using Operator Internet services;
- Encryption AES 128 bits ECB or AES 256 CBC;
- System information: intrusion, failures, arm, disarm, and others.
* VIAWEB Mobile requires annual payment to enable specific features.

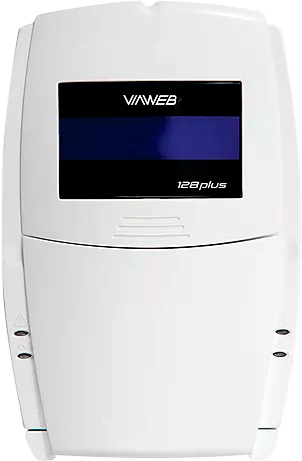

VW128 PLUS – KEYPAD
Model
Code: 3.02.00.0061
Characteristics
- Show up to 128 zones;
- User passwords: 64;
Programmable keys: 10; - Automation routines: 34 – Automation actions result from the combination of different routines.
Example: if the system is armed, lights can be turned on if an intrusion happens; - 01 zone or Automation Output (programmable);
- Selection of the partitions to be shown and operated;
- Back light intensity programmable;
- Operates without system supervison (programmable).
Model

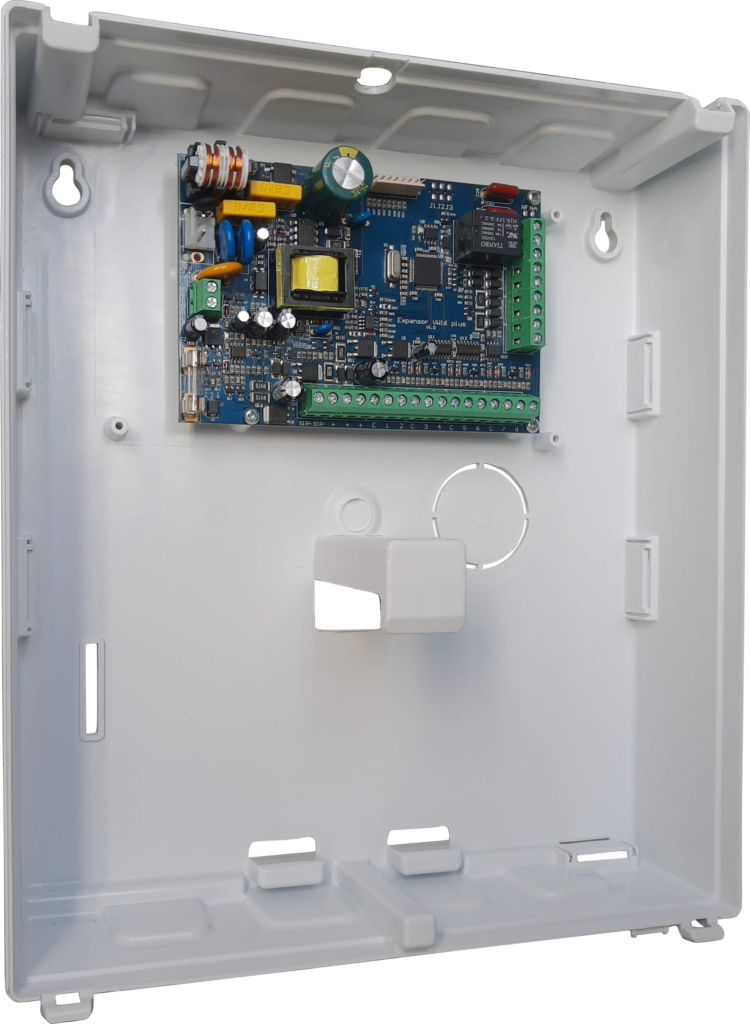

VW16Z PLUS ZONE EXPANDER
Code: 3.03.00.0195 Kit – with ABS case
Characteristics
- 16 (8+8) programmable zones;
- 3 automation outputs (one with 10A relay);
- Auxiliary output: 1,2A;
- Full range power supply 110V-220Vca;
- Siren output 2,5A;
- 34 automation routines;
- Software update using serial cable;
VIAWEB products are fully prepared for banks and large systems.
Solutions
VIAWEB Alarm Panels and Internet Modules are fully prepared for bank and large system application, supplying encripted communication, anti clonning technology, and reliable designs.
Products prepared for small spaces or large environments, enable the security service provider to supply expandable solutions, with easy installation and maintenance.
Characteristics
- Up to 128 zones
- Compatible with VIAWEB keypads
- Compatible with VIAWEB 4G / IP Universal internet interfaces
- Supports VIAWEB panic button accessories
- Alarm Panels and Zone Expanders with Internal full range power supply and battery charger

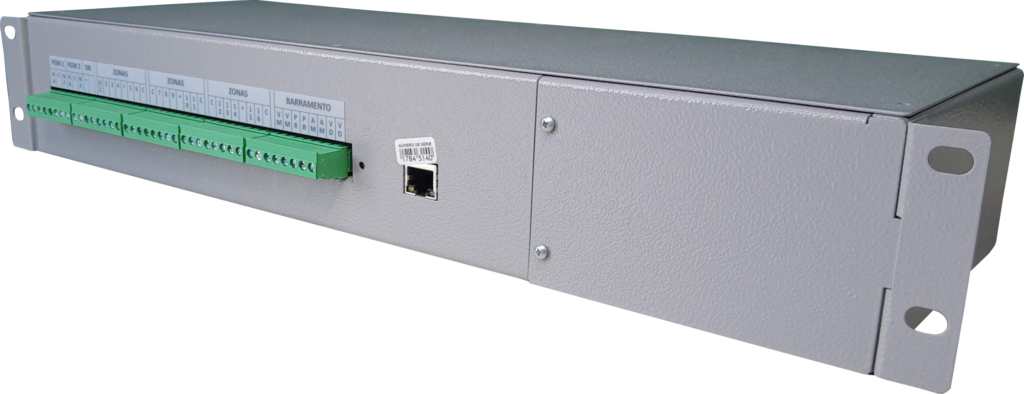

- Different models, including options for 19″ rack
